Point Hotspot Properties

Point Hotspots are interactive points that open websites, PDFs, videos, informational texts, and more. This article covers all the properties of a point hotspots.

The hotspot properties are in the Properties Panel
and appears once a hotspot is added or selected.

ID

The ID of the Point Hotspot. You’ll find this ID addressed in the
Skin Editor and listed in the outputted XML.
Pano2VR
automatically assigns the IDs in consecutive order. They can be renamed.

Type

Choose what the hotspot should do. What you choose here affects the Link Target
URL below.

URL – Enter the website URL or file name of a node (
http://www.example.com).

Tour Node – Connects tour nodes.

Image – Clicking on an image hotspot results in opening an image. Click the
folder button for Link Target URL to navigate to an image. Or
drag an image to the Viewer to add an Image type point
hotspot.

Video – Show a video when the hotspot is clicked. When Video is selected,
a menu appears for you to choose the video’s Source: URL, File, YouTube, Vimeo.
Drag in the YouTube or Vimeo video URL and Pano2VR recognize
it.

Info – Use this to popup an information window displaying the text entered
for Title and Description.

PDF – This hotspot opens a PDF. Drag PDFs to the Viewer to
create the hotspot, or navigate to the file using the open file button for Link
Target URL.

Skin-ID

Use the Skin-ID to connect this hotspot to a
hotspot template. For example,
if there is a hotspot template called, wiki, and you would like a point
hotspot to take that template’s characteristics, you would enter, wiki, in
this field.

Depending on the point hotspot’s type, the Skin-ID will be prefilled with an ID
that’s used by the hotspot templates in the built-in skin. For example, an
info type point hotspot will have the Skin-ID of ht_info. This can be
overwritten if your skins don’t use the same convention.

Title

Add the title of the hotspot here. This title is visible when the mouse pointer
hovers over the hotspot. For example,
a tooltip.

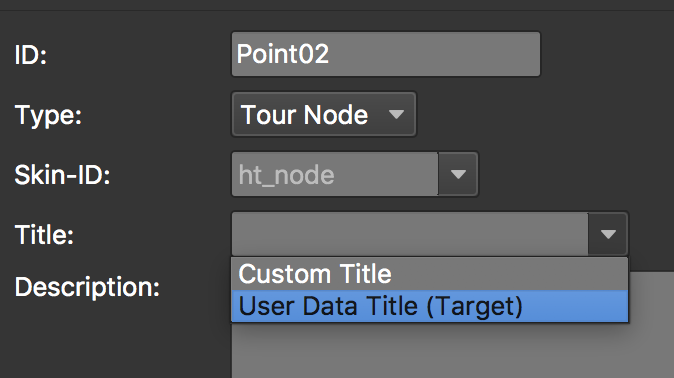

If the hotspot type is Tour Node, you can choose between a
custom title or to use the title of the connecting node (User Data Title of the
linked node).

Description

Enter a description of the hotspot here or text for an information pop-up box.
If you plan to use an information hotspot template, the description would appear
in the info pop-up box.

Type Parameters

The options here will depend on what is chosen for Type.

The file field found in Image, Video File, and PDF, has a context menu.
Right-click in field to bring up the menu.

URL and Info

Link Target URL – Enter the web URL or path.

Target – Add a target to
specify where/how to open the website (or
panorama). This determines if the URL is opened in a new
browser window, in the same window, etc. Use the Copy button to copy the same
target to all nodes in the project.

Target	Action
`_blank`	Opens the linked document in a new window or tab
`_parent`	Opens the linked document in the parent frame
`_self`	Opens the linked document in the same frame as it was clicked
`_top`	Opens the linked document in the full body of the window

Tour Node

Tour Node – Choose a node from the menu. Click the green arrow (Follow
Hotspot Link) to open the linked node.

Target View – Specify the view that the linked panorama opens up to.

Enter Target – Enter the Pan, Tilt, and Field of View in this field. This
will override the default view settings in viewing parameters of the target
node when entering through this hotspot. Enter the parameters separated by
forward slashes (/), e.g. 324.0/-3.5/70.0.
Forward – Use Forward to ensure that the target direction always moves
forward in a tour. This will override the default view.
Backward – Use Backward to look back to the previous node when arriving at
the target node.

For example, in a tour with 3 nodes (node1, node2, and node3), you may want
the connection from node1 to node2 to node3 to have the forward target and the
connection from node3 to node2 to have the backward target, so you can
immediately move back to node 2 once you arrive at node 3.

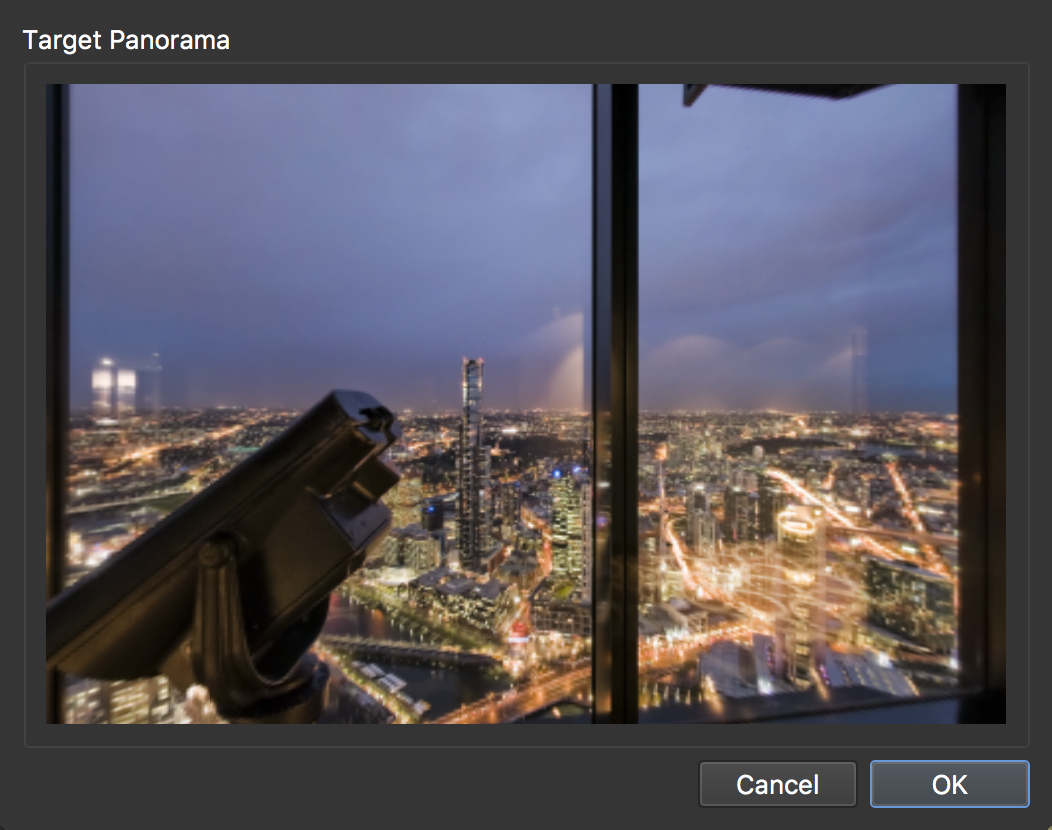

Target Viewing Parameters – This window will appear after clicking the
bullseye button. Rotate the panorama to the desired opening view and click OK
when you’re done. This option is only available for Tour Node type hotspots.

★ Tip Command/Control-click on a point hotspot in the Viewer to open the Target Viewing Parameters.

Copy Target – Click the copy button to copy the target to all point
hotspots. This option is only available for Tour Node type hotspots.

Distance – Enter the distance between nodes. If the panoramas have GPS,
distance can be determined automatically by selecting Auto.

★ Tip Distance can be displayed in text fields using placeholders in the skin and even used as triggers in logic blocks. This setting will also affect a hotspot’s size, or how near or far the hotspot is to the viewer in WebVR.


Image File – Click the folder icon to navigate to the image file.

Target – Add a target to
specify where/how to open the website (or
panorama). This determines if the image opens in a new browser
window, in the same window, etc. Use the Copy button to copy the same target
to all nodes in the project.

Target	Action
`_blank`	Opens the linked document in a new window or tab
`_parent`	Opens the linked document in the parent frame
`_self`	Opens the linked document in the same frame as it was clicked
`_top`	Opens the linked document in the full body of the window

Video

Source – Select the video source. Depending on the chosen video source,
specify the file, web URL or Youtube/Vimeo URL below:

Video File – Click the folder icon to navigate to the video file.
Video URL – Add the URL of the video.
YouTube ID – Add the YouTube share link. Time stamp links are supported, for
example https://youtu.be/ElPYmmlcUh8?t=307.
Vimeo ID – Add the Vimeo URL. For example, https://vimeo.com/694838103.

PDF

PDF File – Click the blue folder icon to navigate to and add the PDF file.
Or drag the PDF to the space to the left of the folder icon add
the file.

Target/Start Page – If the skin supports PDF hotspots (includes a
PDF Element), enter the
page number for Start Page. If the skin does not support PDF hotspots, indicate
how to open the PDF in a browser.

Target	Action
`_blank`	Opens the linked document in a new window or tab
`_parent`	Opens the linked document in the parent frame
`_self`	Opens the linked document in the same frame as it was clicked
`_top`	Opens the linked document in the full body of the window

Auto Place / Lock Position

For Auto Place, both the current node and the node you are linking to need GPS
data. It is selected by default when activating a
ghost hotspot and is signified
with a lock symbol on the hotspot. This means that if the GPS data or North of
one of the two linked nodes changes, the hotspot will be automatically placed in
its new, correct location.

If you wish to move the hotspot to a different location, deselect Auto Place and
move the hotspot or change the Pan and Tilt parameters.

A point hotspot can be locked even if it does not have location data.

Autoplaced nodes will show in List View with a
padlock indicating that they are autoplaced and locked. To unlock it,
double-click it in List View, then deselect Auto Place/Locked in the hotspot
settings or Shift-click the hotspot in the Viewer.

★ Tip If you plan to upload your project to Google Street View, be sure that Auto Place is selected.

Pan

Adjust the placement of the hotspot along the horizontal axis.

Tilt

Adjust the placement of the hotspot along the vertical axis.

Custom Image

Here, you can quickly assign a hotspot a custom image. This is useful for when a
specific image is needed for one particular hotspot. For instance, if you are
using a skin, but one hotspot needs a different image/icon, you can add it here.
Likewise, you can add a custom image without having to create and add a skin.

Add the custom image by clicking the folder and navigate to the image. Once the
image is added, it’ll be visible in the Viewer. To resize the image, drag on
the red handles.

Width and Height – The image’s dimensions.

3D Distorted – When selected, the image correctly distorts
with the panorama. You can also set the field of view (FoV) to adjust the
hotspot’s size.

★ Tip If you’d like to apply custom images for certain hotspot types that appear throughout a project, you can do this using hotspot templates. See: Custom Hotspot Images
