Add an Image Patch

The most common use for the patch tool is for retouching the nadir (down shot). Extract just a portion of the nadir, retouch that extracted image in your image editor and then update the patch.

Patch the Nadir

1. Choose the Patches Mode from the
   Viewer Modes (hover mouse
   over the icon in the top left corner of the Viewer).

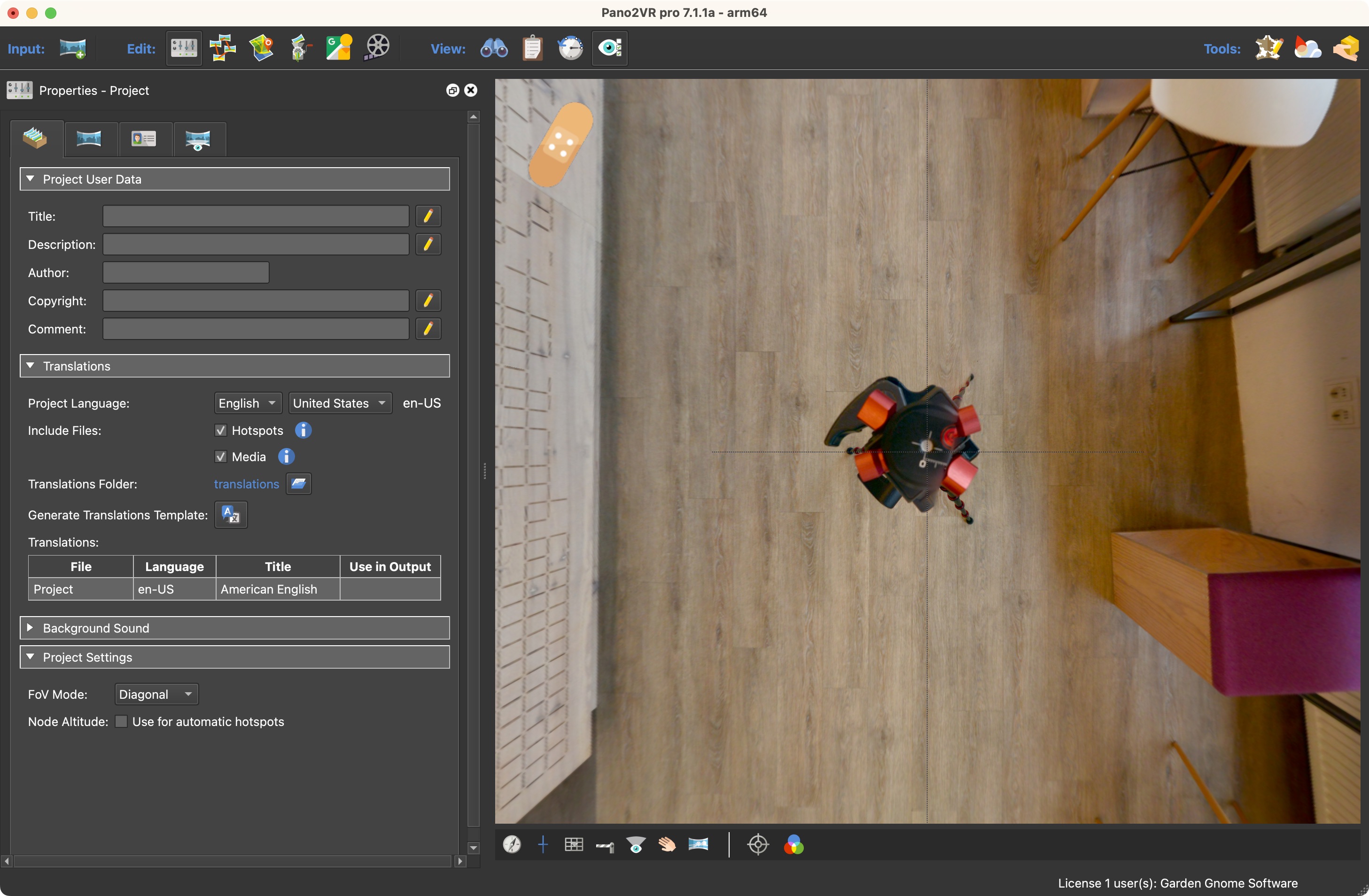

2. In the Viewer, spin the panorama to the location to be patched. In this case,
   to the down shot to hide the tripod.

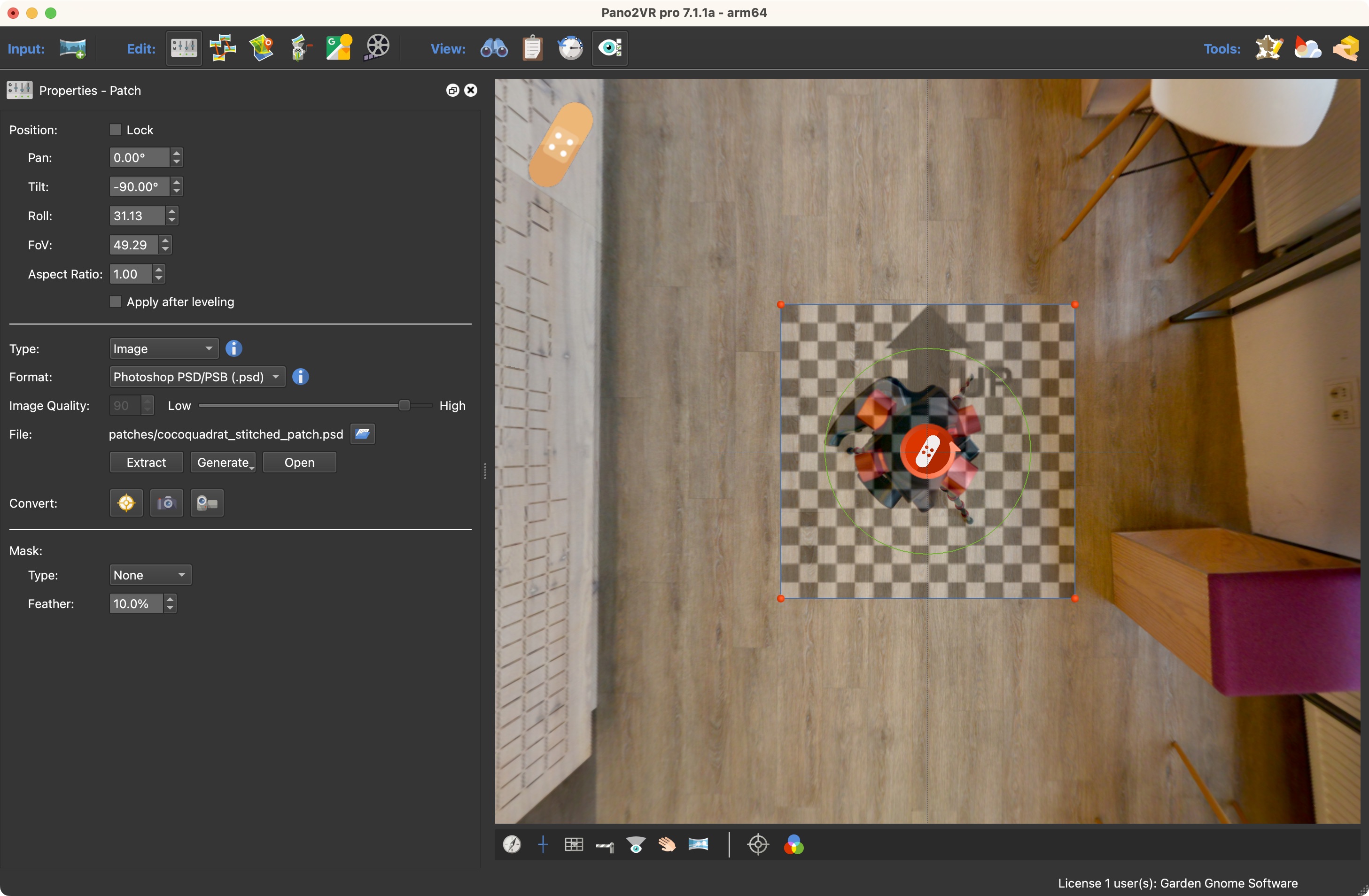

3. Double-click in the Viewer to add the patch. The patch will be
   represented by a checkerboard. You can move the patch by dragging the center.
   The patch can also be resized by dragging on the red handles. Patches will
   snap to the zenith and nadir.



   The Properties panel opens and
   shows the Patch’s properties.

4. For the Type, select Image. (Image is the default selection.)

5. Keep the Format as a Photoshop file.

6. Click, Extract. If Photoshop is installed (or any photo editor that
   accepts a photoshop file), the patch will open in Photoshop once Extract is
   hit.

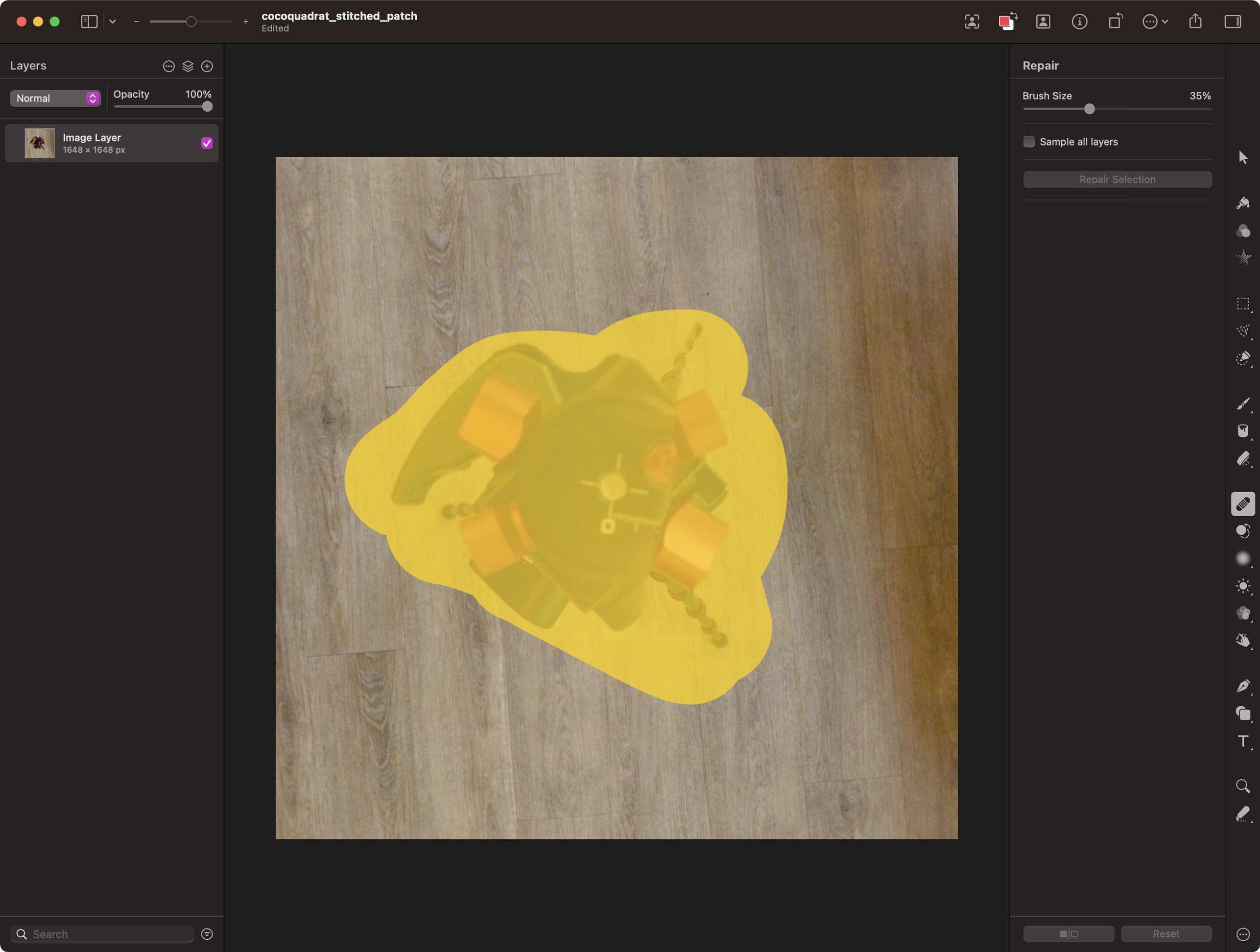

7. Edit the extracted patch in the photo editor and then save it, overwriting
   the original, extracted patch.

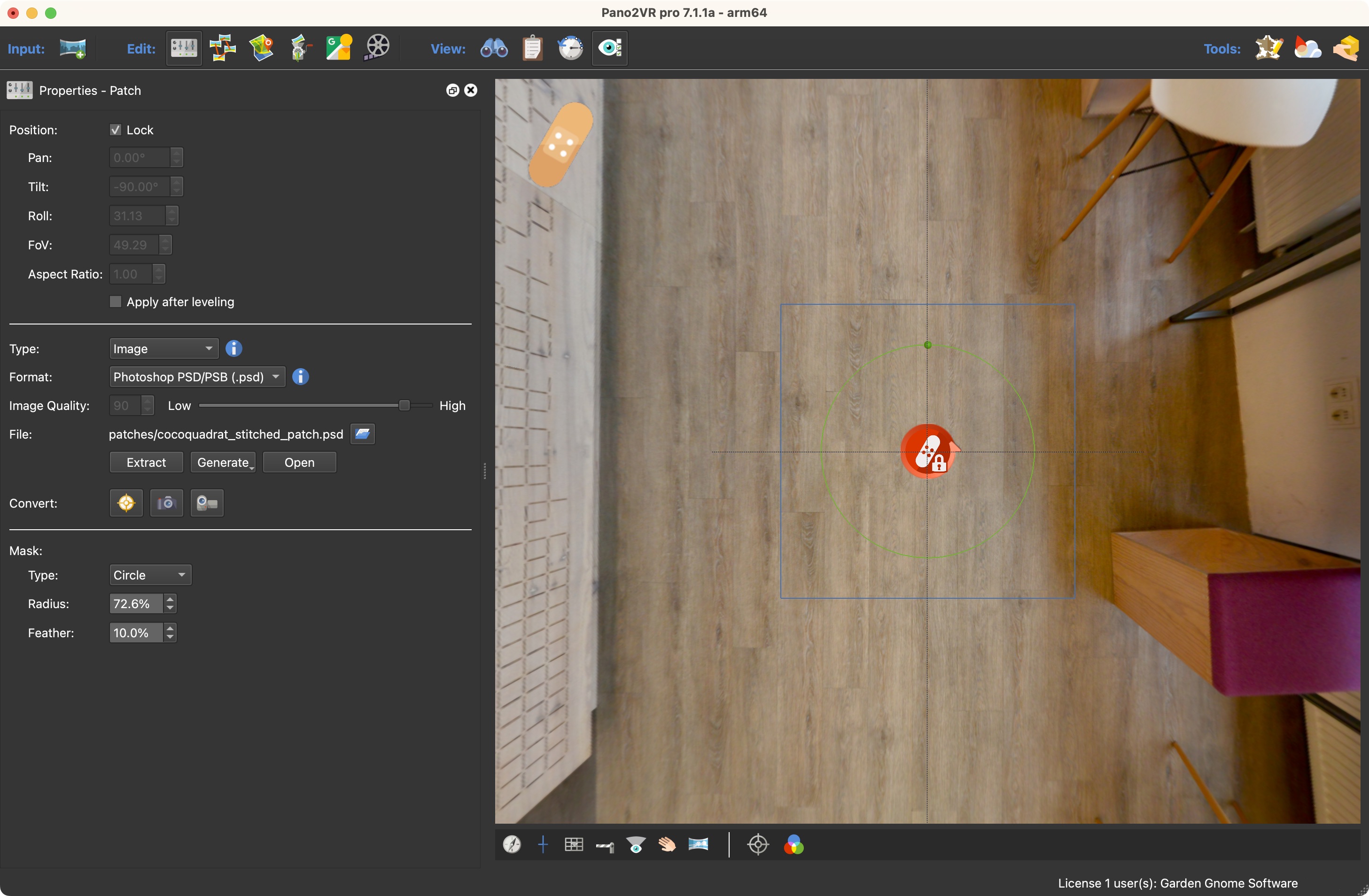

8. Go back to Pano2VR. The panorama will be automatically updated with the
   edited patch.

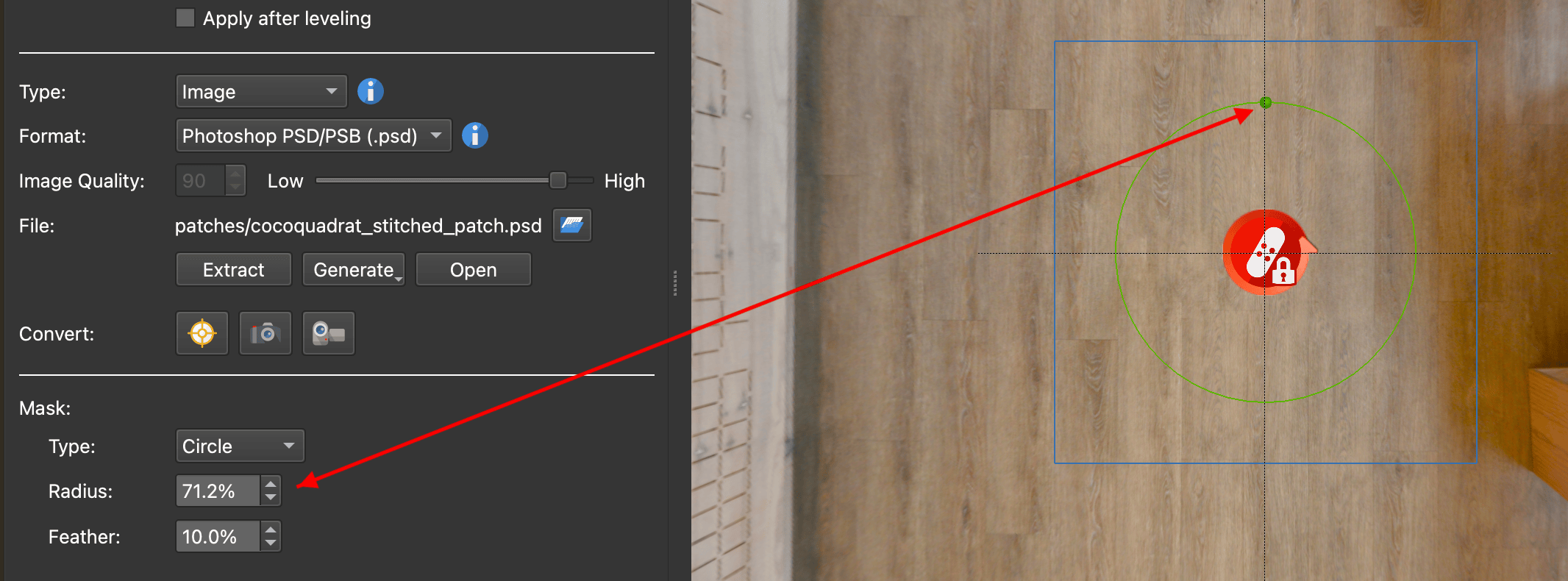

9. Adjust the Feather Mask if needed. For this, example, choose Circle as
   the type. Drag the green handle inside the patch to adjust the Radius.
   Change the amount of Feathering if needed by dialing in the percentage. The
   Patch will update. If it doesn’t update right away, give the mouse a little
   wiggle.



Copy Patches

There are multiple ways to copy patches. Copy and paste in the Viewer for
precise placement or use List View.

Using the Viewer

1. Activate the patch to be copied (red).
2. Right-click anywhere in the Viewer and choose Copy Active Patch.
3. To paste, right-click anywhere in the Viewer and select Paste Media Element
   to paste.

Using List View

1. Open List View.
2. Right-click the patch and choose copy or use Control-C (win)/Command-C
   (macOS).
3. Right-click the patch and choose copy or use Control-V (win)/Command-V
   (macOS).
