Skin Editor Properties

The Properties section is where the settings for the skin and elements are located. It also holds the settings for the Canvas and the skin itself. All the properties are grouped in collapsable panels.

The Properties panel shows the skin settings when no element is selected. To
deselect an element and return to these settings, click in the outer part of the
canvas.

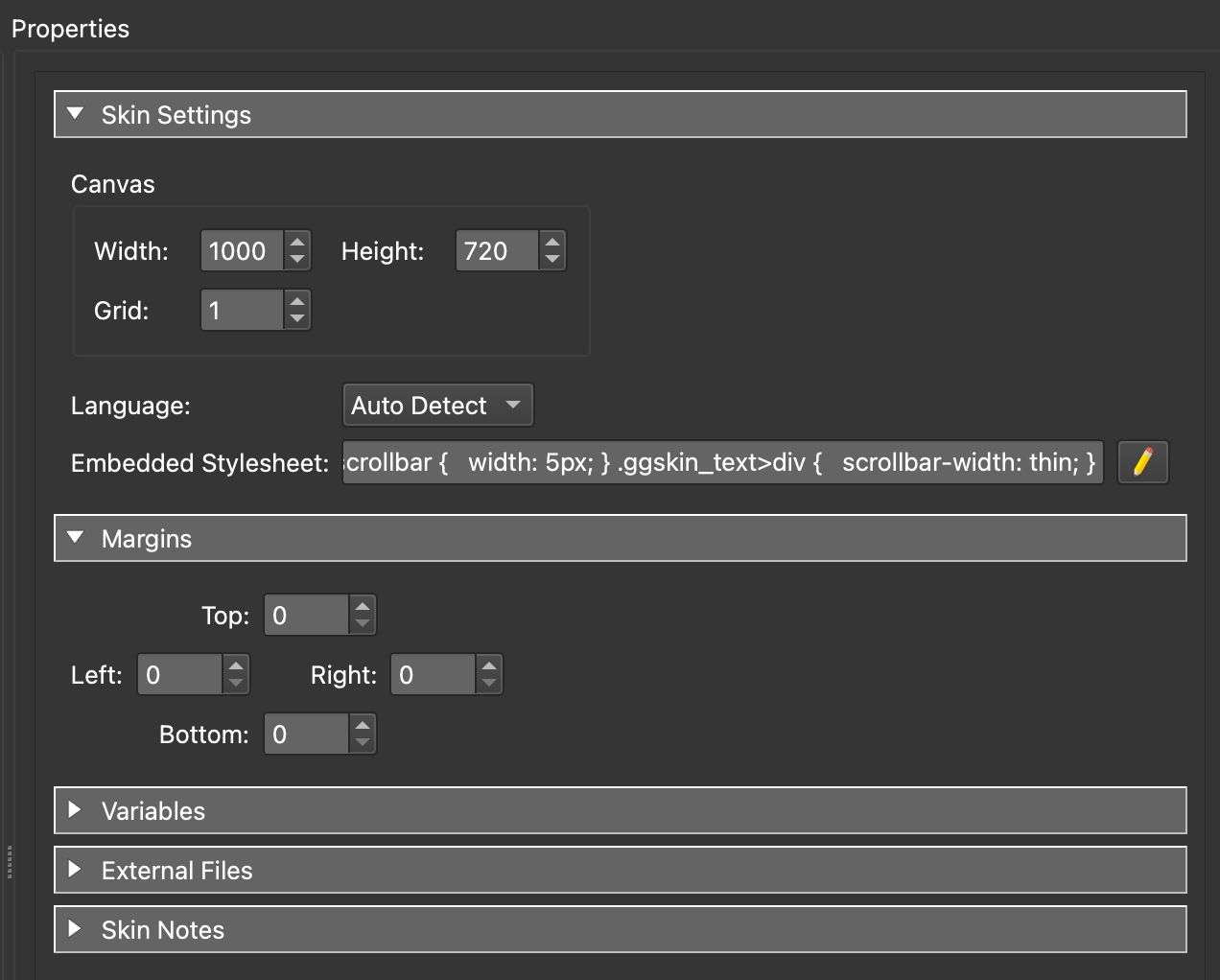

Skin Settings

Width & Height – This will adjust the canvas’s width and height, measured
in pixels. To get a better idea of how your skin will look on output, set the
size to the project’s output window size.

Grid – Adjust the canvas’s grid in pixels. For example, a setting of 10,
will create a grid of 10 pixel squares.

Language – This sets the language for the skin. Auto Detect is set by
default. Poedit will auto detect the language based on the content in the POT
file. However, a specific langauge can be set which maybe useful if the content
has mixed languages. See:
Translating Skins

Embedded Stylesheet – Add CSS code to apply to the whole skin. See:
Embedding Fonts

Margins

Use margins to set extra space outside of the panorama window (Top, Bottom,
Left, Right) to display elements outside of it. These elements could be anything
from maps, thumbnails and buttons.

★ Tip There is a skin action Change Margins that lets you modify those margins later on.

Variables

Variables are powerful little tools that can help simplify automation within a
skin. Variables hold a value and that value can change. Give the variable a
name, and a value based on its type: Number, Text, True/False.

You can create an action based on a variable’s value. For example, you can
create an action that will only trigger when that variable’s value is true.

Or, you could use a
Set Variable Value action to
change the variable’s value and then use a Logic Block that uses a variable as a
trigger. This method can be used to hide and show elements with a single action.

Variables can be used as custom triggers in
logic blocks.

Each variable has the option to apply a
Logic Block.

Add variables to the variables table by double-clicking in the table or clicking
the +.

Name

The name of the variable. This will show up in the Triggers list in a logic
block, in the placeholders list in a textbox, and in the
Set Variable Value Skin
Action.

Type

Choose the type of variable:

Number – The value is expressed as whole or decimal numbers.

Text – The value is expressed as text or string.

True/False – A boolean type value using true or false.

Init Value

This is the variable’s base (default) value and it depends on the variable type.
For example, if the Type is set to True/False, the Init Value can only be
either true or false. Apply
Logic Blocks here.

Expose

Select to have the variable exposed in the skins
configuration in the Web output. This allows for skins to be easily configured
for the needs of each project.

Description

An optional description of the variable. If you expose the variable, this
description will appear as the label in the Edit Skin Configuration dialog in
the Web Output.

Source

This column will show the variable’s source as an icon. These variables are
added from Project Variables (i.e. from Animation Editor) and Custom Properties
in User Data and Hotspots. Click the source icon to change a variable’s source.
This is useful if you’d like to have a variable access the hotspot triggers in a
logic block. This way, the variable does not have to be defined in the project,
just the skin which would make it possible to use in a component.

★ Tip Right-click any variable to rename, cut/paste, delete, or find its usage. Rename and Find Usage will open the Search and will find all instances of that variable. For Rename, enter the new name in the Replace field. Click Replace to rename the variable everywhere in the project.

Rows can be adjusted by dragging on the handles to the left of the row.

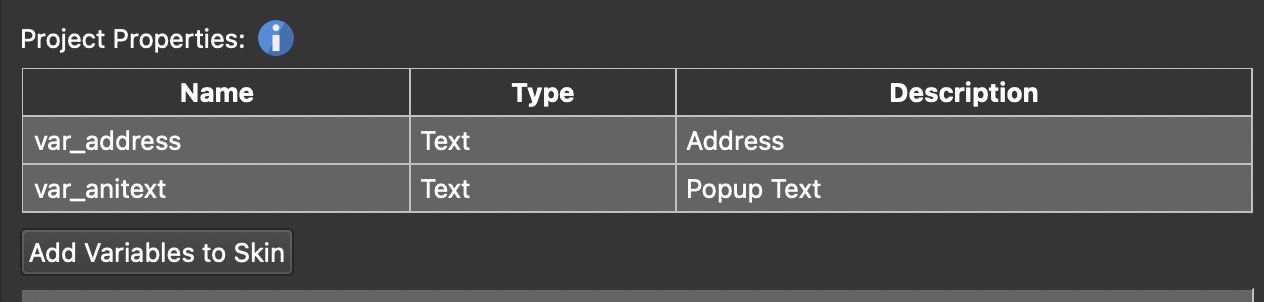

Project Variables

This table will be visible once variables and custom properties that have been
added to the Animation Editor, User Data and Hotspots are removed from the
variables table (using the X in the table). To add them back to the skin, click
Add Variables to Skin.

Right-click any variable to open the context menu.

Cut/Copy/Paste – Cut, Copy, and Paste variables.
Insert Variable Above – Add a variable above the selected row.
Delete All Variables – Clear the table of variables in one fell swoop.
Rename – Opens Search. Enter the new name in the Replace field. Click
Replace to rename the variable everywhere in the project.
Find Usage – Opens Search and lists all elements where the selected
variable is used.

External Files

Use this table to apply your own external script files. You can choose between
JavaScript and CSS. Add the full path URL in the URL column. Rows can be
adjusted by dragging on the handles to the left of the row.

Skin Notes

A section for notes about the skin.

Element Properties

The properties will change to show the settings for the active element. Learn
more about each element’s properties.

Each skin element can have ARIA content added. This content can also be
translated and will appear in the POT file.

Working in Properties

Below you’ll find a few tips and shortcuts that will help you customize your
workspace and speed up your workflow when working in the Properties.

Switch to Solo Mode in the Properties

To show only one panel open at a time, do one of the following:

In the menu, choose, View > Properties Solo Mode.
Use the keyboard shortcut: Control-Shift-P/Command-Shift-P
Click the panel header while pressing the Alt key.
Hover your mouse over the right edge of the panel header and click the
ellipses button.

Toggle through the Panels

Use the keyboard shortcut: Control-Shift-PageUp/Down (win) or
Command-Shift-PageUp/Down (macOS)

Show or Hide the Actions and Modifier panels

For the Actions Panel: Control-Shift-A/Command-Shift-A

For the Modifications Panel: Control-Shift-M/Command-Shift-M

Hitting these shortcuts again will close the panels and return the other panels
to their previous state.
