Pinning Images
Learn how to pin images to the panorama with correct distortion.
-
In the Viewer, choose Images from the
Viewer Modes. Or by
using the keyboard shortcutI. -
Drag an image to the Viewer. Or double-click in the Viewer and navigate to
your image to add it.Once added, a transparent version of the image will appear. It is only
transparent in the Viewer to help aid placing and positioning. And the
Properties panel will populate with the
image properties.
Pinned Image -

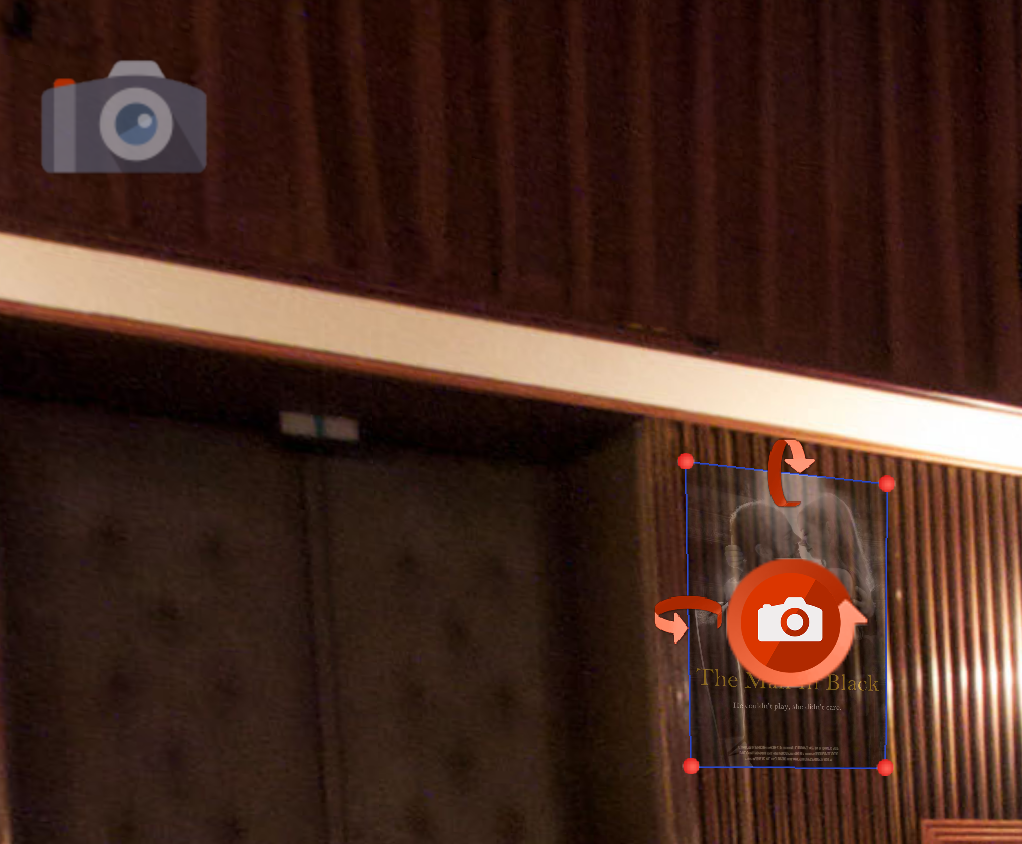

Adjust the image to the panorama by doing one or all of the following:
→ Click on the center icon and drag to move the entire element into position.
→ Move the handles (red corner dots), to match it/pin it to its environment.
→ Resize the image by holding down Alt (win) or Option (macos) while
dragging a corner handle. Dragging away from the center will make the image
smaller.→ Click the top arrow and drag in a vertical motion to tilt the image forward
or backward on the horizontal axis.→ Click on the left arrow and drag in a vertical motion to tilt the image on
its vertical axis.→ Click and drag on the center arrow in a vertical motion to rotate the
element. -
To make the image interactive, choose a Click Mode.
Pop Out Original – When the image is clicked on, the image will animate
forward and appear in its original size which could extend beyond the browser
window.Pop Out Fit – When the image is clicked on, the image will animate
forward and will scale to the size specified in Scaling. The next click
will return the image to its original position.To show that the image is interactive, enable the Hand Cursor. When the
mouse is over the image, the cursor will change to a hand, indicating
interactivity.Select Hide when pinned to keep the image hidden until it’s clicked on.
