Auto-hide Skin Elements

Learn to use a Timer's logic block to hide elements, like a menu, during user interaction.

The basic set-up to hide elements

1. Open the Skin Editor.

2. Add an element. A
   Text Box, for
   example.

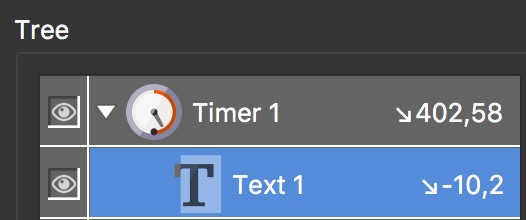

3. Add a Timer
   element by first selecting it in Toolbar and then drag around the Text Box
   in the Canvas. The Text Box will become a child of the Timer.



4. In the Timer properties, open the Timer panel and select
   Player Inactive
   for Type.

5. Set Timeout to 2 seconds. Keep Repeat set to One Time.

6. In the Appearance panel, notice that the arrows next to Visible are
   orange. This means there is already a Logic Block applied. Click the
   orange arrows to open the logic block.

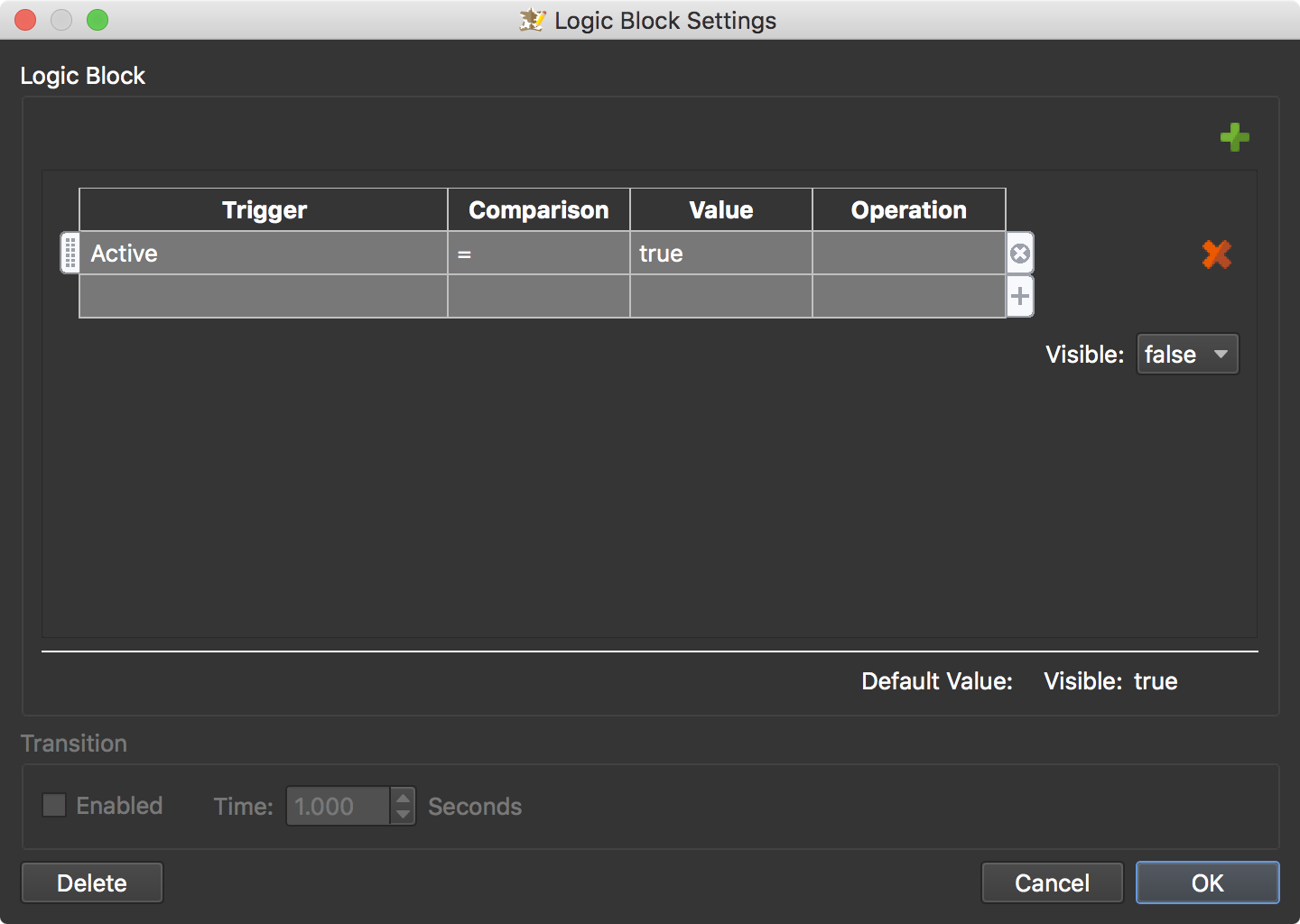

   The Logic Block states that if the Timer is not active, the Timer (and all
   of its child elements) will not be visible. This is an expression with one
   condition.

   We just need to make one adjustment to this expression so that the text box
   hides when we interact with the panorama.

7. Change the Value from false to true.

   Now it states if the player is inactive (meaning, no user interaction) and
   the Timer is is now active (value = true), then the Timer and all its
   children will hide (visible = false). Then, after 5 seconds (the timeout set
   in the Timer properties) the Timer becomes inactive and the Logic Block
   falls back to the default value of Visible = true.



   Click OK to close the settings.

8. Use
   Live Preview
   to see it in action. When you spin or interact within the player, the text
   box will hide and when you stop interacting, the text box will appear again.

9. Save the skin.

Hide elements only during interaction

In the above example, the Text Box starts hidden and doesn’t appear until after
interaction. But, what if you had a menu showing initially and only wanted to
hide it during interaction? For, this, you’d have to not make the Text Box (or
menu) a child of the Timer. Again, we’ll use the Text Box as an example, but you
could hide an entire menu or even the entire skin in this manner.

1. Add a Timer to the Canvas.

2. Add a Text Box to the Canvas.

3. Add a variable. Open the
   Skin’s Properties
   (click anywhere outside of the Canvas) and add the following variable:

   Name	Type	Init Value
   var1	True/False	false

4. In the Timer’s properties, add a few actions:

   Source	Action	Type	Target
   Activate	Visibility	Hide Element	Text 1
   Add an Action Filter: Trigger = var1; Comparison = =; Value = true.

   Source	Action	Type	Target
   Deactivate	Visibility	Show Element	Text 1

   Source	Action	Variable Name	Operation	Value
   Deactivate	Set Variable Value	var1	Set(=)	true

5. Save the project and test the output. The element should show initially, then
   hide when you interact with the panorama. And then it should return to being
   visible.
