Master Node

The master node acts like a template node in which data and elements are applied to all nodes in a tour.

For instance, you can add user data, a patch, or hotspots and they would appear on all nodes. You can edit the Master Node by going to the Tour menu and choosing, Edit Master Node or click Edit Master Node in the User Data.

All Viewer Elements can be added to the master node. These elements will be seen in List View for any Tour Node. Point Hotspots will additionally appear in the Viewer.

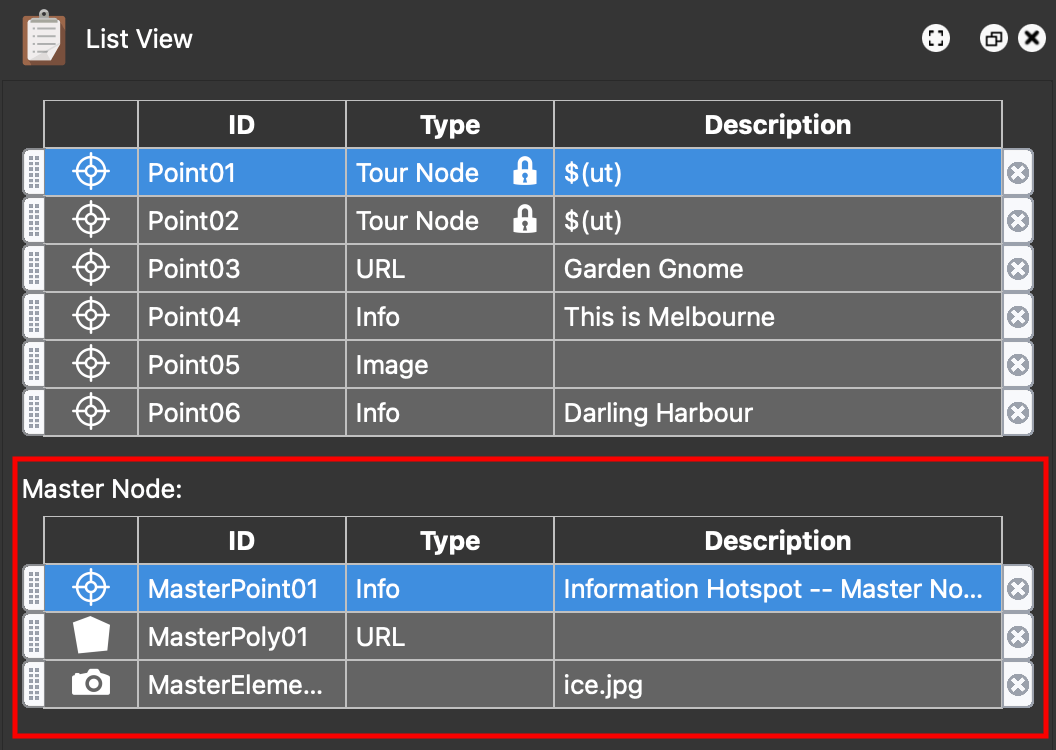

Master Node elements in List View.
Master Node elements in List View.

Viewer Elements

Viewer Elements added in the Master Node will be visible in the Viewer even when not in the Master Node.

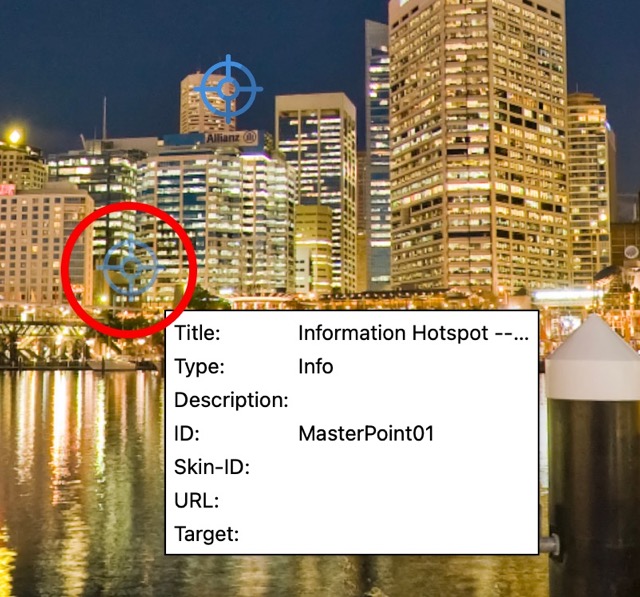

The Master Node point hotspot visible in the viewer.
The Master Node point hotspot visible in the viewer.

They will appear like the main viewer elements, but will be more transparent. When selected, the Master Node properties for that element will appear and they can be edited without going into the Master Node. They cannot be repositioned

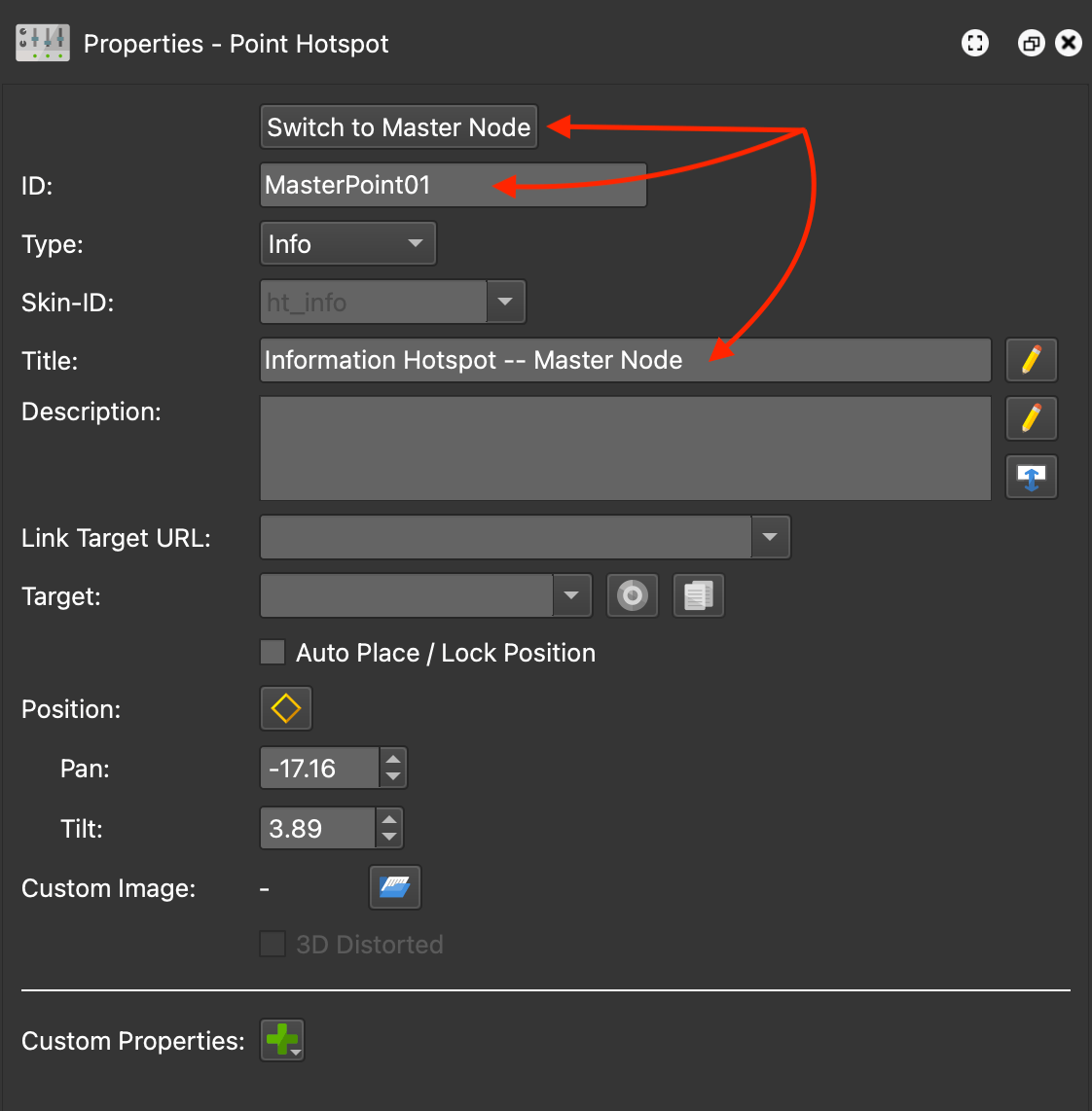

Master Node Point Hotspot Properties
Master Node Point Hotspot Properties

User Data

You can use placeholders in the Project User Data of the Master Node which can pre-populate the fields. For example, if your image filenames include the title of the image, you can use the placeholder, $(ib) in the Title field.

Then, when you exit the Master Node you will see the User Data title populated.

Custom Properties

Adding custom properties are also available for User Data and Hotspots. Adding them here will add them to all nodes.

See also…

Last modified: Feb 14, 2024
