Polygon Hotspot Properties

Here you'll find the properties for the polygon hotspots which are found in the Properties panel once a hotspot is added or selected.

The hotspot properties are found in the Properties Panel and will appear once a hotspot is added or selected.

Other settings, like hiding the hotspots, are found in the Web Output Settings.

ID

The ID of the Hotspot which can be used in the Skin Editor.

Type

Choose what the hotspot will do. What you choose here will affect the Link Target URL below.

URL – Enter the website URL or file name of a node (i.e. http://www.example.com).

Tour Node– Choose a node from the menu to link to other nodes in a tour.

  • Skin Proxy – This type of polygon hotspot has no function, but rather only responds to Hotspot Proxy IDs added to the skin.

Title

Add the title of the hotspot here. This title will be visible (e.g. tooltip) when the mouse pointer hovers over the hotspot.

Description

Enter a description of the hotspot here.

Link Target URL

The options here will depend on the Type chosen.

  • URL – enter the web or path URL to the node.

  • Tour Node – choose a node from the menu. Click the green arrow to open the linked node. Alternatively, drag in a tour node from the Tour Browser on to the polygon hotspot.

Target

Add a target to specify where to open the website (or panorama).

If Tour Node is selected as Type, click the bullseye icon to orient the opening view of the next panorama.

★ Tip: You can also enter the Pan, Tilt, and Field of View information in the Target field. This will override the default view settings in viewing parameters of the target node. Enter the parameters separated by slashes (/): 324.0/-3.5/70.0.

Color

Choose the color of the polygon hotspot.

  • Use Default – Select to use the default colors defined in the Hotspots panel in the web output properties.

  • Background and Border – Click the colors to open a color palette and define new colors.

✭ The color changes are not visible in the Viewer.

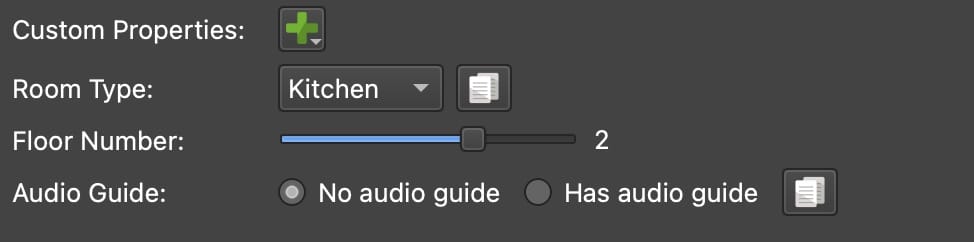

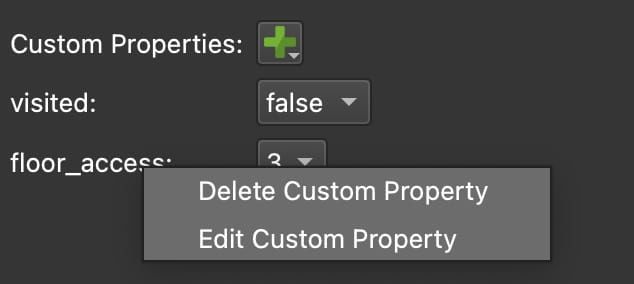

Custom Properties

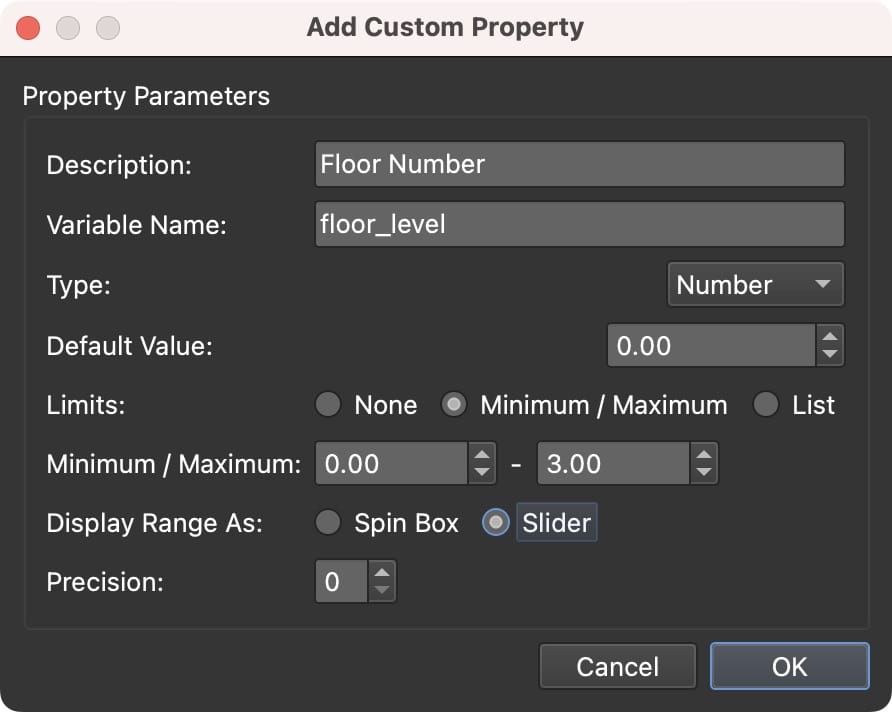

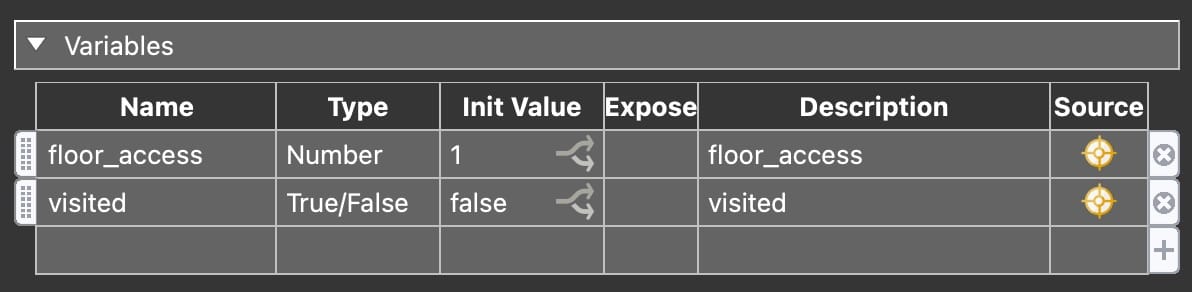

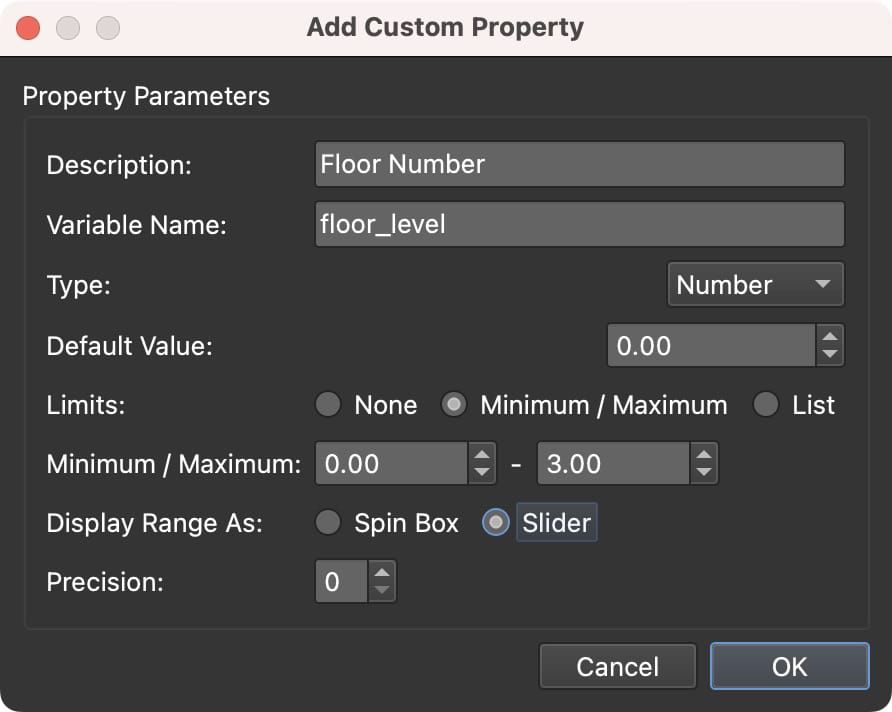

Custom Properties allow for additional parameters. The custom property is a variable that is used in the skin.

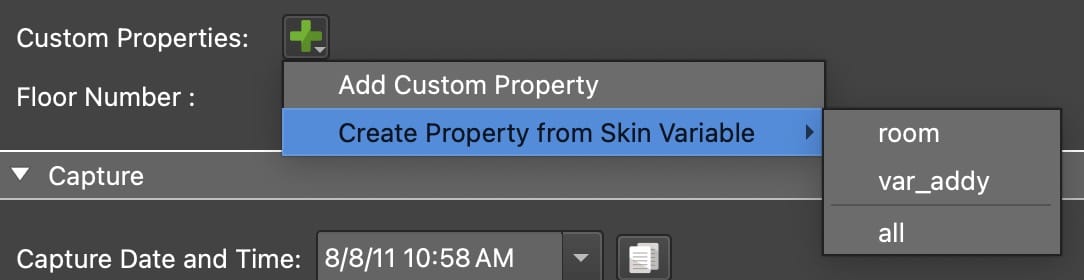

Click the plus button to add a custom property.

Learn how to add custom properties
